What Is a Network Cable Tester?

A network cable tester is a diagnostic tool that verifies the integrity, wiring configuration, and continuity of Ethernet and telephone cables. Simple as that. Whether you're running Cat5e through a Victorian terrace or troubleshooting a dodgy patch lead in a server rack, these tools tell you instantly if your cable's working or not.

Right then — I've been messing about with networking gear since I moved into my rental in Fallowfield. The WiFi was shocking, so I ended up running Ethernet through the flat. That's when I first picked up an RJ45 cable tester, and honestly? It saved me hours of frustration.

The basic principle is straightforward. The tester sends a signal through each wire pair and checks it arrives at the other end in the correct sequence. If there's a break, short, or miswire, you'll know within seconds. No guesswork.

Who Actually Needs One?

More people than you'd think. Network installers, obviously. But also IT support staff, home lab enthusiasts, landlords managing multiple properties, and — like me — renters who've inherited questionable cabling from previous tenants. If you've ever spent 45 minutes wondering why your connection keeps dropping, only to find a crushed cable behind the skirting board, you'll understand the appeal.

The Health & Safety Executive recommends regular testing of network infrastructure in commercial environments, particularly where cable runs exceed 50 metres or pass through areas subject to interference.

Types of Cable Testers for Networking

Not all testers do the same job. The range spans from £8 LED-only units to £2,000+ certification tools. Here's what's actually out there.

Basic Continuity Testers

These check whether each pin connects end-to-end. They'll catch open circuits and shorts. That's it. They won't tell you about crosstalk, signal quality, or cable length. For home use and simple patch cable verification, they're perfectly adequate. Prices start around £8-15.

Advanced Wire Trackers & Tone Generators

This is where things get properly useful. A digital wire tracker like the MCBAZEL Digital Wire Tracker combines continuity testing with cable tracing — meaning you can identify specific cables within a bundle or trace runs through walls. The MCBAZEL unit sits at £27.99 and covers RJ45, RJ11, and BNC connections.

Professional Certification Testers

Fluke Networks dominates this space. Their DSX CableAnalyzer series (£4,000-£12,000) provides full TIA/ISO certification testing. A Fluke cable tester measures attenuation, NEXT, return loss, and propagation delay. Overkill for most of us? Absolutely. Essential for commercial installers who need to certify to BSI standards like BS EN 50173? Without question.

Multi-Function Testers

The NF-8506 network cable device is a good example of the middle ground. It combines PoE detection, cable length measurement (±1m accuracy up to 350m), and wire mapping in one unit. Typically priced between £45-80.

MCBAZEL Digital Wire Tracker: Hands-On Review

The MCBAZEL Digital Wire Tracker costs £27.99 with free UK delivery and sits in that sweet spot between basic testers and professional gear. I've been using one since early 2026, and it's become my go-to for tracing cables in my flat.

What I like: the tone generator is loud enough to hear through plasterboard, which is brilliant when you're trying to figure out which cable goes where behind a wall. The LED wire map display is clear — green for good, red for fault. No ambiguity.

What could be better? Well, actually, the instruction manual is a bit sparse. Took me a few minutes of fiddling to work out the sensitivity adjustment. That said, once you've got it sorted, it's dead intuitive., a favourite among Britain’s tradespeople

For anyone doing DIY network installs or troubleshooting existing runs, this sits at proper bang-for-your-buck territory. My mate who does small commercial installs swears by his, and I get why. It handles 90% of what you'd need without the Fluke price tag. If you want to learn more about tracing cables through walls, there's a solid guide on how to trace Cat6 cable in walls that covers the technique in detail.

How to Use a Network Cable Tester: Step-by-Step

Using an RJ45 cable tester is straightforward once you know the process. Here's how I do it with the MCBAZEL unit, though the steps apply to most testers.

Testing a Patch Cable

1. Connect both ends. Plug one RJ45 connector into the main unit, the other into the remote unit (or far-end adapter).
2. Power on. Switch to the wire map test mode.
3. Read the LEDs. For a straight-through cable, pins 1-8 should light sequentially on both units. For crossover, you'll see the expected pin swap pattern (1→3, 2→6, etc.).
4. Check for faults. Missing LEDs = open circuit. LEDs lighting out of sequence = miswire. Two LEDs lighting simultaneously = short.

Tracing a Cable Through a Wall

This is where the tone generator earns its keep. Connect the transmitter to one end of the cable, then use the probe wand to trace the signal along the cable's path. The closer you get, the louder the tone. Dead simple, but incredibly satisfying when you finally locate that mystery cable behind the plaster.

For a deeper walkthrough on testing methodology, the guide on testing Ethernet cable length covers measurement techniques that complement basic continuity testing.

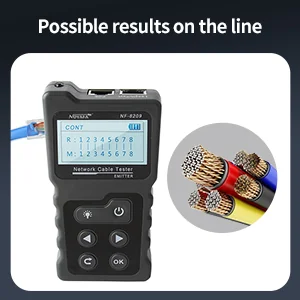

Interpreting Results

A network cable quality tester will typically show you one of four outcomes:

• Pass: All 8 wires connected correctly, no shorts or opens
• Open: One or more conductors broken — usually at the crimp point
• Short: Two or more conductors touching — often from over-stripped shielding
• Miswire: Connections present but in wrong sequence — re-terminate needed

If you're getting intermittent faults that a basic tester can't catch, you might need to test for open and short circuits using more advanced methods.

Network Cable Tester Comparison: 2026 UK Market

So what's the catch with budget testers? And is a Fluke cable tester really worth ten times the price? Here's an honest comparison based on what I've used and researched this spring.

Look, I know the price seems steep when you look at the Fluke end of things. But here's the reality: if you're not certifying installations for commercial clients, you don't need a £800 tester. The MCBAZEL at £27.99 handles everything a home user or small-scale installer actually needs. Worth the extra spend over a basic £10 unit? Absolutely — the tone tracing alone justifies it.

Where to Buy a Cable tester in the UK

Pricing and availability vary quite a bit depending on where you shop. Here's the market as of June 2026.

Network cable device Price Guide

A network cable tester from Toolstation will typically be the Philex or Mercury brand — fine for checking patch leads but limited beyond that. If you're after something with tracing capability, you'll need to look online.

The Which? buying guides recommend checking that any tester you purchase supports the specific cable categories you're working with — Cat5e, Cat6, or Cat6a all have different performance characteristics that affect testing requirements.

What About Second-Hand Fluke Testers?

I've seen people on forums recommending used Fluke units from eBay. Honestly? I'd be cautious. Calibration matters with precision instruments, and a Fluke network cable tester that's out of calibration is basically an expensive paperweight. If you need Fluke-level testing, budget for a calibrated unit or hire one for specific jobs.

Other MCBAZEL Products Worth Knowing About

Since I've been using the wire tracker, I've had a look at what else MCBAZEL offers. They've got a surprisingly broad range that goes well beyond networking tools., popular across England

MCBAZEL COB Work Light

Proper useful for working in dark cupboards or ceiling voids where cables run. I've used mine when tracing cables above the suspended ceiling in our office. Magnetic base, 1000+ lumens, rechargeable via USB-C. Decent bit of kit for under £20.

PSP to HDMI Cable (MCBAZEL)

This one's for the retro gaming crowd. If you've still got a PSP kicking about and want to play on a bigger screen, the PSP to HDMI cable from MCBAZEL handles the upscaling. Not networking-related, obviously, but it shows the brand's range across consumer electronics accessories. For anyone into retro gaming setups, finding the best OSSC for retro gaming in the UK is another rabbit hole entirely.

How to Use a PS2 to HDMI Converter

Another popular MCBAZEL product. You plug it directly into the PS2's AV multi-out port, connect an HDMI cable to your TV, and switch to the correct input. No external power needed on most models. The converter handles the analogue-to-digital conversion at 480p or 576i depending on the game region.

MCBAZEL Soil Tester

Bit left-field, this one. But if you're into gardening — and living in Manchester means dealing with clay-heavy soil — a soil pH and moisture tester is genuinely handy. The MCBAZEL version doesn't need batteries, which is a nice touch.

MCBAZEL IEC C13 Power Cable

Standard kettle-lead style power cable. Nothing glamorous, but MCBAZEL's version uses thicker gauge copper (1.5mm²) than most budget alternatives. If you're powering networking equipment, a decent MCBAZEL power cable matters more than people think — cheap leads can introduce electrical noise that affects sensitive equipment.

Key Takeaways

• A network cable tester is essential for anyone installing or maintaining Ethernet infrastructure — from home setups to commercial environments.
• The MCBAZEL Digital Wire Tracker at £27.99 offers the best value for home users and small installers, combining wire mapping with tone tracing and free UK delivery.
• Budget testers (£8-15) only check continuity — they won't trace cables through walls or identify specific wires in a bundle.
• Fluke certification testers (£800-12,000) are only necessary if you're formally certifying commercial installations to BSI/TIA standards.
• Always test unpowered cables with basic testers — only PoE-rated units can safely detect live connections up to 57V DC.
• Cable tracing capability (available from £27.99 upward) saves significant time when identifying runs through walls, ceilings, and cable bundles.
• For UK buyers in 2026, the sweet spot sits between £25-80 depending on whether you need length measurement and PoE detection alongside basic testing.
